Features and Benefits
_X000D_
_X000D_ • Rugged Deprendability, High Quality and Innovation Make Cummins Onan Marine Generator in Marine Generator Design and Development, Providing Performance You Rely On. ™
_X000D_ • The Digital QD (Quiet Diesel) Series Models Are The First Marine Generator Sets with Self-Monitoring Capability and Network Communication.

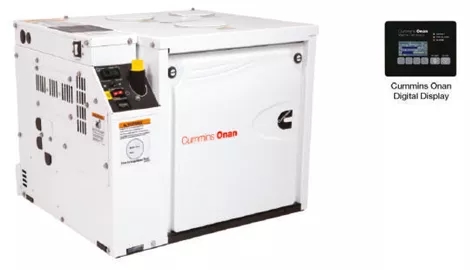

_X000D_ • The Optional Cummins onan Digital Display Provides User-Friendly Self-Diagnostic Features and Text Display Inclument Extensive Engine and Alternator Information.
_X000D_ • Cummins Onan Marine Generators, with Advanced Design and Development Processes, Use Technology to Lower Sound and Vibration. Our sound shields minima noise and deliver better sound Quality. The Optimized Mounting System Greatly Reduces Vibration.
_X000D_ • Certified to U.S. Environmental Protection Agency (EPA) Emission Standards.
_X000D_ • Cummins Onan Marine Generators have the Largest Worldwide Certified Distributor/Dealer Support Network in the Industry with the 70 Years of Marine Experience.
_X000D_
_X000D_Standard Features
_X000D_ • Advanced Digital Electronic Control Providing Extensive Diagnostic Capability
_X000D_ • Shutdown with Diagnostic Indicator Light for: High Engine Coolant Temperature, High Exhaust Temperature, Low Oil Pressure, Over Speed/Voltage, Starter Overcrank, No Raw Water Flow
_X000D_ • Start-Run-Stop Switch with Glow Plug Preheat and Fuel Pump Priming Modes for Easy Starting; Run Light and Diagnostic Indicator Light
_X000D_ • Start Function Has Automatic Glow Plug Preheat for Cleaner Starting
_X000D_ • Engine Starter with Automatic Start Disconnect
_X000D_ • Electronic Governor Allows The Generator Set to Maintain Isochronous Frequency Control and Close Voltage Regulation to Provide Quality Power For Digital Appliance and Computers
_X000D_ • Front Panel Oil Fill and Level Check
_X000D_ • Single Phase AC Alternator with Single Or Dual Voltages
_X000D_ • Digital Voltage Regulator Integral with Control
_X000D_ • 12 V DC Electric System with Battery Charging, Negative Ground and DC Protective Circuit Breakers
_X000D_ • Electric Fuel Transfer Pump for Priming and Lift Capability
_X000D_ • Freshwater Cooling System with Heat Exchanger, Expansion Tank and Coolant Recovery System
_X000D_ • Water Coled Exhaust Mixing Elbow
_X000D_ • AC Mainline Circuit Breaker
_X000D_ Running Time Meter
_X000D_ • Air Intake Silencer
_X000D_ • Mounting Systems with Vibration isolators
_X000D_ • Full Flow Lube Oil Filter
_X000D_ • Service Side Accessible Oil Drain Valve
_X000D_ • Electric Fuel Shut-Off Via Electronic Governing Actuator
_X000D_ • Fuel Filter/Water Separator
_X000D_ • DRIP PAN Base Capable of Continger All Generator Set Fluids
_X000D_ • External Mount Tabs Allow Flexible Mounting Arrangement
_X000D_ • Bulk Head Type Connections for Ease of Installation Include Fuel in Fuel Out, Battery, Raw Water inlet, Wet Exhaust and Generator Set Ground (Vessel Bond)
_X000D_ • Integral Enclosure for Environmental Protection from Noise, Salt Water, and Moving Parts
_X000D_ • Plug-in Watertight Connector for Optional Remote Control
_X000D_ • Closeed Crankcase Breather Re-Circulation to Elminate Engine Room Contamination
_X000D_ • Coolant Overflow Bottle for Easy Coolant Level Maintenance
_X000D_ • Fire Extinguisher Access Port
_X000D_ • Factory Load Tested
_X000D_ • Five Year Limited Warranty
_X000D_
_X000D_Engine Details
_X000D_Design:4-Cycle, Water-Coolled Diesel
_X000D_Cylinders: 3
_X000D_BORE:67 mm (2.64 in)
_X000D_Stroke:68 mm (2.68 in)
_X000D_Displacement:719 cm 3 (43.88 in 3)
_X000D_Compression Ratio:23.5:1
_X000D_Max Fuel Lift:1.22 m (4 FT)
_X000D_Lube Oil Capacity:3 L (3.2 QT)
_X000D_Coolant capacity:3.1 L (3.3 QT)
_X000D_Coolant flow rate:50 Hz: 35 l/min (9.2 gal/min)
_X000D_Raw Water Flow Rate:50 Hz: 19 l/min (5 gal/min)
_X000D_Starting System:12 V
_X000D_Power (Max):Saej1939 50 Hz horse 2880 rpm 13 kW
_X000D_Fuel Injection Pump:Bosch Md Type
_X000D_Combustion Chamber:Spherical
_X000D_Max Raw Water Lift:1.22 m (4 FT)
