Features and Benefits
_X000D_
_X000D_ • Rugged Deprendability, High Quality and Innovation Make Cummins Onan Marine Generator in Marine Generator Design and Development, Providing Performance You Rely On. ™
_X000D_ • The Digital QD (Quiet Diesel) Series Models Are The First Marine Generator Sets with Self-Monitoring Capability and Network Communication.
_X000D_ • The Standard Cummins onan Digital Display Provides User-Fiander-Fiagnostics Inclument Extensive Engine and Alternator Information, Self-Diagnostic Features and Text Display.
_X000D_ • The Cummins Onan Marine Generators with Advanced Design and Development Processes Use Technology to Lower Sound and Vibration. Our sound shields minima noise and deliver better sound Quality. The Optimized Mounting System Greatly Reduces Vibration.
_X000D_ • Certified to U.S. Environmental Protection Agency (EPA) Emission Standards.
_X000D_ • Cummins Onan Marine Generators have the Largest Worldwide Certified Distributor/Dealer Support Network in the Industry with More Tha 70 Years of Experience.
_X000D_
_X000D_Standard Features
_X000D_
_X000D_ • Advanced Digital Electronic Control Providing Extensive Diagnostic Capability
_X000D_ • SAE J-1939 Can Data Link For Monitoring Gelerator Set Status and Diagnostics for Engine and Alternator

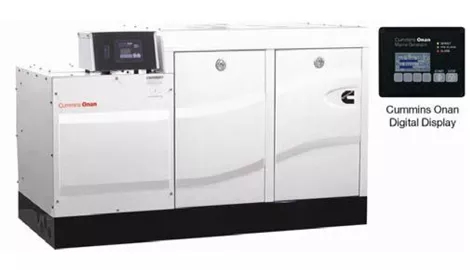

_X000D_ • Cummins Onan Digital Display - Graphical LCD Display for Generator Set Operating Parameters, Diagnostics, and Pre -Alarm Indication in Text Format
_X000D_ • Shutdown with Diagnostic Indicator Light for: High Engine Coolant Temperature, Low Oil Pressure, Over Speed/Voltage, Starter Overcrank, Additional Customer input and Many More
_X000D_ • Electronic Governor Allows The Generator Set to Maintain Isochronous Frequency Control and Close Voltage Regulation to Provide Quality Power For Digital Appliance and Computers
_X000D_ Three Phase Alternator, 90 ° C Rise at 50 ° C ambient, Brushless, 12 Lead Reconnectable
_X000D_ • Digital Voltage Regulator Integral with Control
_X000D_ • 12 V DC Electric System with Battery Charging, Negative Ground
_X000D_ • Mechanical Fuel Transfer Pump with Manual Priming Lever
_X000D_ • Engine Starter with Automatic Start Disconnect
_X000D_ • Water Coled Exhaust Manifold and Turbocharger
_X000D_ • Freshwater Cooling System with Keel Cooling Connections
_X000D_ • Coolant Overflow Bottle to Easily Mainaine Coolant Level
_X000D_ • Dry Exhaust Elbow with Flange Connection
_X000D_ • Common Fault Relay for External Alarm
_X000D_ • Combustion Air Filter with With Element
_X000D_ • Full Flow Lube Oil Filter
_X000D_ • Oil Drain Valve
_X000D_ • Fuel Filter/Water Separator, Primary and Secondary
_X000D_ • DRIP PAN
_X000D_ • Bulk Head Type Fuel Line Connections for Ease of Installation
_X000D_ • Captive Focalized Mounting Systems with Vibration isolators
_X000D_ • Single Point Lifting Bracket For Ease of Installation
_X000D_ • Plug-in Watertight Connector for Optional Remote Panel
_X000D_ • CLOSED CRANKCASE VENTİLATION SYSTEM with Filter to Elminate Engine Room Contamination
_X000D_ • Factory Load Tested
_X000D_ • Five Year Limited Warranty
_X000D_
_X000D_Engine Details
_X000D_
_X000D_Design:4-Cycle, Turbocharged, Water-Cooled Diesel
_X000D_Cylinders:4
_X000D_BORE:106.5 mm (4.2 in)
_X000D_Stroke:127 mm (5.0 in)
_X000D_Displacement:4.5 L (275 in3)
_X000D_Compression Ratio: 17.0:1
_X000D_Max Fuel Lift:3 m (10 ft)
_X000D_Lube Oil Capacity:12.6 L (13.3 QT)
_X000D_Coolant flow rate:53 l/min (14 gal/min)
_X000D_Raw Water Flow Rate:70 l/min (18 gal/min)
_X000D_Starting System:Remote 3-wire, 12 V Starting Battery Required, 640 cca; 24 V optional
_X000D_Power (Max): SAEJ1349
_X000D_ 50 Hz horse 1500 rpm 61 kW (82 hp)
_X000D_Fuel Injection Pump:Stanadyne de-10
_X000D_Combustion Chamber:Direct Injection
_X000D_Max Raw Water Lift:3 m (10 ft)
